PEDS: Closed-Loop Benchmarking of Social Navigation across Pedestrian Behavior Models

6

pedestrian drivers across four model classes

20

scenarios on a load × density grid, crossed with 4 robot policies

14pp

swing in within-policy success rate from the driver alone (up to 30 pp on dense scenarios)

>3×

peak cross-class trajectory divergence on dense scenarios (1.5× on average)

Social navigation benchmarks quietly fix one pedestrian model. PEDS makes it a variable, and robot policy rankings reorder depending on which crowd model you test against.

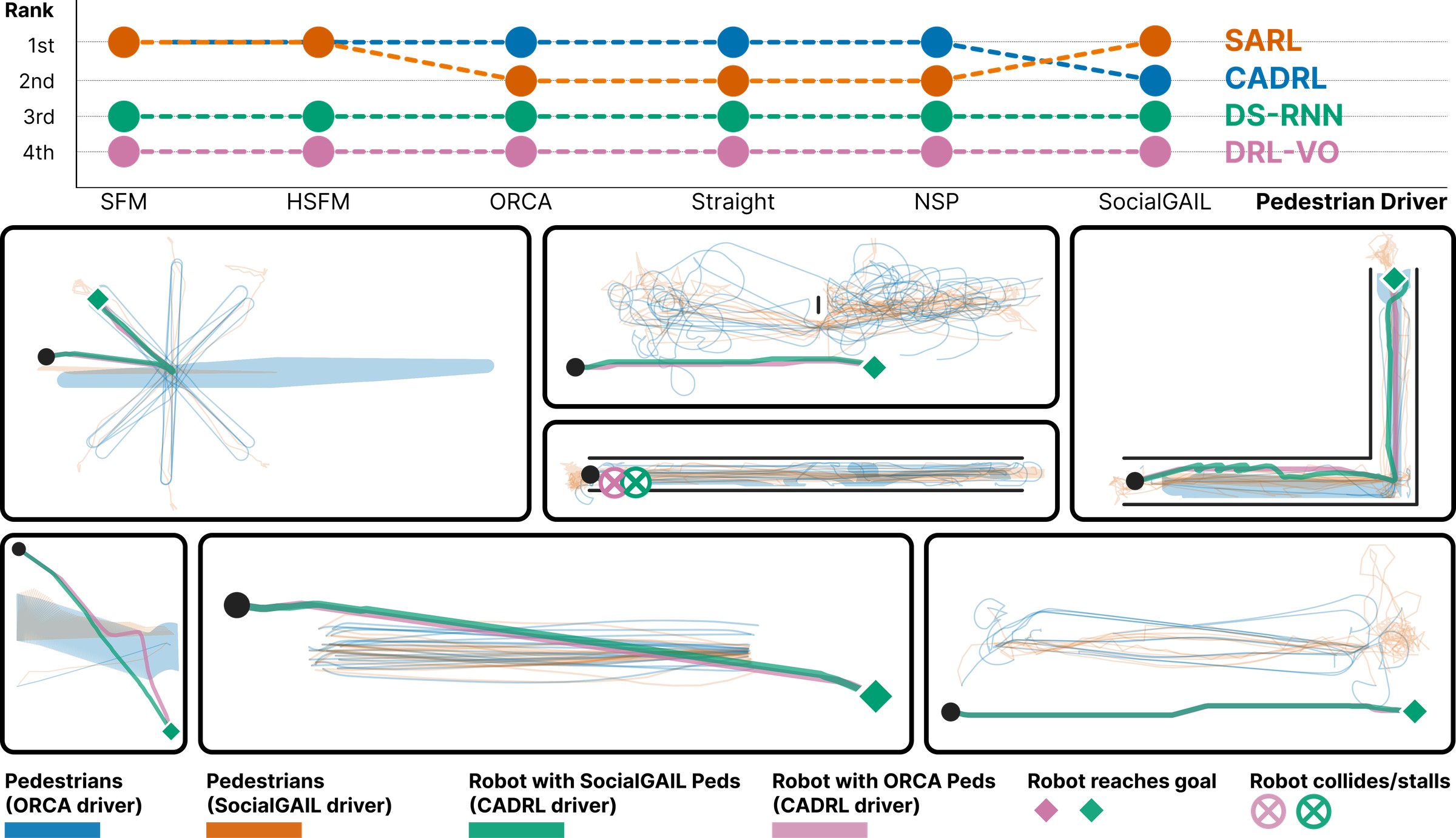

Rank chart of four robot policies across six pedestrian drivers, with example trajectories — FIG. 1 **The pedestrian driver is a primary axis of evaluation.** The same robot policy (CADRL, green and pink) stalls or reaches the goal depending on which driver shapes the surrounding pedestrians (bottom), and per-driver policy ranks reorder across the six drivers on the dense pure-navigation scenarios (top).

01 / Abstract

Robot policy or pedestrian model? Separating the two.

Social navigation benchmarks evaluate robot policies but leave the pedestrian behavior model as an uncontrolled axis of evaluation, conflating claims about policies with claims about the human models used to evaluate them. We introduce PEDS (Pedestrian Evaluation Dataset & Simulator), a modular human simulator that treats the pedestrian driver as the unit of variation. A deterministic executor synchronizes the driver and the robot policy so that, at fixed seed, driver substitution is the only source of trial-to-trial variation.

The release comprises six pedestrian drivers across four model classes: force-based (SFM, HSFM), velocity-based (ORCA), a no-avoidance baseline (Straight), and imitation-learned (NSP, SocialGAIL). The accompanying dataset spans 20 pedestrian-driver scenarios on a load × density grid, crossed with four robot policies in closed loop. Within-policy success varies by up to 14 percentage points across pedestrian drivers overall, and up to 30 percentage points in dense navigation scenarios. Cross-class trajectory divergence averages 1.5× in general and peaks above 3× on dense scenarios. On pure-navigation scenarios, a change of seed moves trajectories more than a change of driver (ratio 0.75); on behavior-tree scenarios the driver effect is the larger one (1.43). We release the dataset under CC BY 4.0 and the code under the Apache 2.0 License.

Pedestrian drivers: SFM · HSFM · ORCA · Straight · NSP · SocialGAIL
Robot policies: SARL · CADRL · DS-RNN · DRL-VO
Scenarios: 20, load × density
Middleware: ROS 2
Dataset: CC BY 4.0
Code: Apache 2.0

02 / Demo video

A modular human simulator built on ROS 2

Social navigation research typically compares robot policies under a single pedestrian simulator. That makes evaluation inseparable from the crowd model: two policies may look better or worse simply because they were tested against different crowd dynamics.

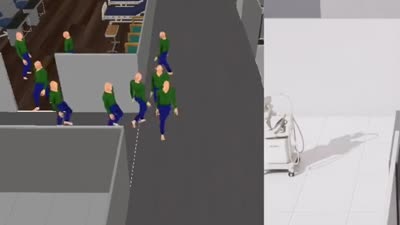

CLIP 01 / 05Any simulator. The same scenario runs in RViz, Gazebo and Isaac Sim at once, so results stay comparable across physics engines.

03 / System

Swap the crowd, keep everything else fixed

PEDS separates pedestrian behavior, scenario logic, and robot navigation into independent components. Drivers can be exchanged without touching the simulation infrastructure or the robot controller, isolating the influence of pedestrian behavior on downstream navigation.

Running HSFM × CADRL pick any driver or policy below, and nothing else changes

Pedestrian infrastructure

Perception Resolver KD-tree lookupFOV filtering

Need-driven Behavior Trees

Interaction Manager Lookup / routingContracts

Global Pathfinding DijkstraA*

Animation Generator KinematicDummy

Recording / Visualization

Local Collision Avoidance pedestrian-driver slot

Environment

Evaluator Success rateCollision rateSmoothness…

Built-in Simulator YAML scenariosROS 2GazeboIsaac SimUnity

Deterministic Executor Lockstep synchronization

Robot policy

Input State Observation

Kinematic Policy robot-policy slot

Output State PoseTwist

FIG. 2 System overview. The two pedestrian-driver slots, the deterministic executor cycle that advances drivers and the robot policy in lockstep, and the boundary that separates pedestrian infrastructure (released as plug-ins) from robot policy evaluation (kinematic evaluation harness).

Pluggable drivers

Pedestrian-driver slots accept force-based, velocity-obstacle, baseline, and learned models as plug-ins behind one interface.

Deterministic executor

Drivers and the robot policy advance in lockstep. At a fixed seed, substituting the driver is the only source of trial-to-trial variation.

Simulator-agnostic

A built-in kinematic harness for evaluation, plus YAML-defined scenarios that run in RViz2, Gazebo, and Isaac Sim through ROS 2.

Built-in evaluator

Success rate, collision rate, smoothness and more, computed identically for every driver and policy pair.

04 / Pedestrian drivers

Same scenario, same goals, different crowd models

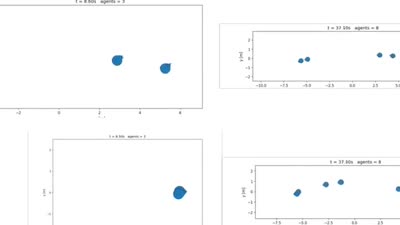

Six reference drivers span classical and learned modeling paradigms. Every driver runs the same scenario description from identical initial conditions, so differences in crowd behavior come from the pedestrian model alone.

Force-based

Social forces

SFMHSFM

Velocity-obstacle

Reciprocal avoidance

ORCA

Baseline

No avoidance

Straight

Imitation learning

Learned from data

NSPSocialGAIL

Although each crowd pursues identical navigation goals, local interactions, collision-avoidance strategies, and collective motion differ noticeably across driver classes.

05 / Robot policy benchmark

One robot, three crowds, three outcomes

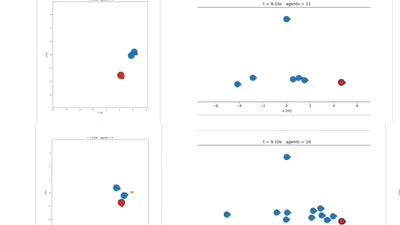

PEDS evaluates every robot policy against multiple pedestrian drivers rather than a single crowd model, revealing whether a policy stays reliable under different assumptions about human behavior. Below, the same CADRL policy navigates each scenario under three drivers.

In many scenarios the same robot shows noticeably different success rates, collision statistics, and social compliance, depending solely on the pedestrian driver generating the surrounding crowd.

06 / Integrations

Compatible with external simulators

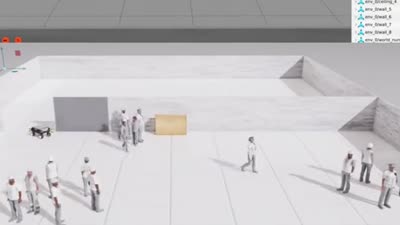

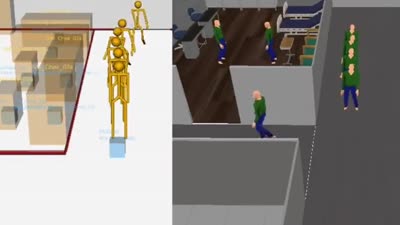

PEDS speaks ROS 2, so the same scenario runs in the built-in simulator or streams into external 3D simulators. Pick a scenario, then a simulator to bring it on stage.

07 / Citation

BibTeX

@article{peds2026,
  title   = {PEDS: Closed-Loop Benchmarking of Social Navigation
             across Pedestrian Behavior Models},
  author  = {Nguyen, Duc Tai and Shcherbyna, Volodymyr and Do Duc, Anh
             and Shen, Zhengcheng and K{\"a}stner, Linh},
  journal = {IEEE Robotics and Automation Letters},
  year    = {2026}
}
